HLA
1
2
3
4
5
6
7
8
9
 21 home

HLA15
CODE
PROBE
ACC.N
MAP
UCSC May 2004
REMARKS
15C
 RP11-826A18 BES 15q21.3 chr15:55,550,827-55,721,436 HLA15ptel&15qcen

RP11-846K6 BES 15q21.2 chr15:48,810,360-48,983,766
15B
 RP11-702B15 BES 15q21.1 chr15:44,800,078-44,954,199

RP11-133K1 AC020658 15q15.1 chr15:38,241,120-38,400,125
15A
 RP11-441B20 AC080077 15q11.2 chr15:22,905,050-23,073,407

CENTROMERE




B-A





HyA inversion
15C
 RP11-826A18 BES 15q21.3 chr15:55,550,827-55,721,436 HLA15ptel&15qcen

RP11-93I17 BES 15q21.3 chr15:56,226,174-56,410,834
15D
 RP11-236P11 AC087632 15q22.31 chr15:62,366,899-62,510,409
15E
 RP11-182J1 AC048382 15q25.2 chr15:82,835,478-83,006,963
15F
 RP11-90E5 AC022710 15q26.3 chr15:98,388,045-98,574,562
B-L





HLA fusion
21A
 RP11-300M18 BES 21q21.1 chr21:17,796,947-17,960,899

RP11-69J11 BES 21q21.2 chr21:23,601,270-23,783,083
21B
 RP11-737F4 BES 21q21.3 chr21:30,427,403-30,601,789

RP11-662O10 BES 21q22.12 chr21:35,707,237-35,869,983
21C
 RP11-162F19 BES 21q22.3 chr21:45,356,460-45,516,200

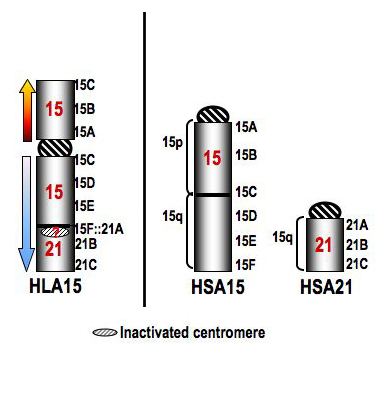

Legend. HLA ideogram (left) showing the synteny block correspondence with the human chromosome(s) (right). Internal red numbers indicate the human corresponding chromosome. Blue and red arrows indicate concordant (blue) and inverse (red) sequence polarity (orientation) with respect to humans. Black numbers (chromosome) followed by a letter (BAC), on the right, indicate specific BACs as reported in the Supplemental Table S1.

B-H Breaks in lineages leading to HSA
B-L Breaks in lineages leading to Lar
 HyA: Hylobatidae ancestor
B-A Breaks in hylobatidae ancestor
B-N Breaks in lineages leading to Nomascus
Splitting clones

</
